Console Accessories Save time and get results.

Power Supply

Phantom Power

Cabling

On-Air Light Kit

16 Channel Switcher

Did you power supply get hit by lightning? Or do you need a spare? You may purchase a standard power supply for any ARC or MARC series console here.



ARC-8 Power supply (1030-401) - $139 each



ARC-10 or ARC-15 Power supply (1030-389) - $159 each



MARC Power supply (1030-388) - $179 each



HOW TO BUY



ONLY AVAILABLE IN THE UNITED STATES (excluding Hawaii & Alaska) - For all international or orders for Hawaii or Alaska, please email consolesupport@arrakis-systems.com for a quote.



STEP 1 - Select which power supply you want. It ships UPS Ground as standard, but you can select the option UPS Next Day if you need it to ship overnight. Then click on the 'Buy Now' button.

Power supply type

STEP 2 -  This will take you to the PayPal page for payment processing. If you have a PayPal account, you may then log on and pay. If you do not have an account, you may select the option "Don't have a PayPal account," and enter in your credit card information.



STEP 3 - Once we have received your order, and processed it, you will receive a notification email. Please provide a valid email address so we can keep you posted on the progress of the order. Standard lead time is approximately 2 to 3 days, but may be faster.



If you have any questions, or have any problems with the checkout process, then please contact our sales staff at sales@arrakis-systems.com.

Do you have Condenser mics? If so, then you will need to purchase the ARC-48V power supply. You only need to purchase a single power supply per board (not per mic). The MARC series board comes standard with an ARC-48V. But all ARC-8, ARC-10 and ARC-15 consoles require the optional purchase for if you are using a condenser mics.



Phantom power supply (ARC-48V) US Type A plug - $69 each



Phantom power supply (ARC-48V-I) International Edition:

Type A (US), Type F (European), Type G ( UK), Type I (Australian) - $79 each



HOW TO BUY



ONLY AVAILABLE IN THE UNITED STATES (excluding Hawaii & Alaska) - For all international or orders for Hawaii or Alaska, please email consolesupport@arrakis-systems.com for a quote.



STEP 1 - Click on the Buy Now button.



STEP 2 -  This will take you to the PayPal page for payment processing. You can select multiple quantities on this page if you need. If you have a PayPal account, you may then log on and pay. If you do not have an account, you may select the option "Don't have a PayPal account," and enter in your credit card information.



STEP 3 - Once we have received your order, and processed it, you will receive a notification email. Please provide a valid email address so we can keep you posted on the progress of the order. Standard lead time is approximately 2 to 3 days, but may be faster.



All phantom power orders ship UPS Ground. If you need it faster, please email consolesupport@arrakis-systems.com for more information. If you have any questions, or have any problems with the checkout process, please contact our sales staff at sales@arrakis-systems.com.

Premade wiring may be purchased with any console or automation system. Pricing may vary based on the desired connections. Either contact sales@arrakis-systems.com for a quote, or speak with one of our dealers to arrange for purchase.



Standard connections (10ft length): $29



Description

RJ45 logic, JK Audio broadcast host hybrid, ARC-10/15/MARC

 3.5mm Phone to XLR Male, Mono output

 RJ45 to XLR Female, Mono input (mic)

 XLR Male to RCA Male output stereo

 XLR Female to RCA Male input stereo

 XLR Male to XLR Female stereo pair

 RJ45 Male to XLR Female stereo input

 RJ45 Male to XLR Male stereo output

 RJ45 Male to XLR Male mono output

 RJ45 Male to RCA Male Input

 RJ45 Male to RCA Male Output

 RJ45 Male to XLR Male Left/Right Mono

 RJ45 Male to XLR Male Mono

 RJ45 Male to XLR Female Mono

 RJ45 Male to 1/8” Stereo input

 RJ45 Male to 1/8” Stereo output







Model #

 ARC-HYB

 ARC-8-SEND

 ARC-8-CALLER

 XLR-RCA-1

 XLR-RCA-2

 XLR-XLR-1

 RJ45-XLR-1

 RJ45-XLR-2

 RJ45-XLR-3

 RJ45-RCA-1

 RJ45-RCA-2

 MARC-OUT

 MARC-SEND

 MARC-MIC

 RJ45-1/8-1

 RJ45-1/8-2







HOW TO BUY

ONLY AVAILABLE IN THE UNITED STATES (excluding Hawaii & Alaska) - For all international or orders for Hawaii or Alaska, please email consolesupport@arrakis-systems.com for a quote.



STEP 1 - Click on the 'Buy Now' button.

STEP 2 - This will take you to the PayPal page for payment processing. Select the total Quantity of cables that you need and click on Update to update your total. All standard cables (listed above) are $29 each.









STEP 3 -  If you have a PayPal account, you may then log on and pay. If you do not have an account, you may select the option "Don't have a PayPal account," and enter in your credit card information.



STEP 4 - There is an option to add a note to the order, by which you can add which specific cables you want to choose from the list above. Or you may email this list to sales@arrakis-systems.com.



Once we have received your order, and processed it, you will receive a notification email. Please provide a valid email address so we can keep you posted on the progress of the order. Standard lead time is approximately 3 to 4 days, but may be faster.



If you have any questions, or have any problems with the checkout process, then please contact our sales staff at sales@arrakis-systems.com.

Custom connections: If you do not see the cable you are needing listed above, please contact consolesupport@arrakis-systems.com to get a quote.







Console connections:

The following are the types of connections that each of our consoles have. Free RJ45 cables are provided with the MARC, ARC-15 & ARC-10BP consoles.

MARC-15

ARC-15

ARC-10BP

ARC-10UP / U

ARC-8

Output Connection Types: RJ45

Input Connection Types: RJ45

Output Connection Types:

Program - XLR Male or RCA Female

Audition - RCA Female or USB

Monitor - RCA Female

Phone - XLR Male

Program Mono Mix - RCA Female

Audition Mono Mix - RCA Female

Headphone - 1/4" Female





Input Connection Types:

There is an option to choose between 2 to 5 mics. If you choose less mics, then those channels are exchanged to become balanced RJ45 Female connections.

2 - 5 Mic Channels - XLR Female

8 - 11 Input Channels - RJ45 Female

Channel 14 - USB or RCA Female

Channel 15 - XLR Female

Cue - 1/8" Female

Air - RCA Female

Output Connection Types:

Program - XLR Male or RCA Female

Audition - RCA Female or USB

Monitor - RCA Female

Phone - XLR Male

Program Mono Mix - RCA Female

Audition Mono Mix - RCA Female

Headphone - 1/4" Female





Input Connection Types:

2 Mic Channels - XLR Female

6 Input Channels - RJ45 Female

Channel 9 - USB or RCA Female

Channel 10 - XLR Female

Cue - 1/8" Female

Air - RCA Female

Output Connection Types:

Program - XLR Male or RCA Female

Audition - RCA Female or USB

Monitor - RCA Female

Phone - XLR Male

Program Mono Mix - RCA Female

Audition Mono Mix - RCA Female

Headphone - 1/4" Female





Input Connection Types:

2 Mic Channels - XLR Female

6 Input Channels - RCA Female

Channel 9 - USB (only with the UP model) or RCA Female

Channel 10 - XLR Female

Cue - 1/8" Female

Air - RCA Female

Output Connection Types:

Program - XLR Male or RCA Female

Monitor - RCA Female

Phone - 1/8" Female

Headphone - 1/8" Female





Input Connection Types:

2 Mic Channels - XLR Female

4 Input Channels - RCA Female or RJ45

Channel 7 - RCA Female or RJ45

Channel 8 - USB or RCA Female

Cue - 1/8" Female

Ext - RCA Female

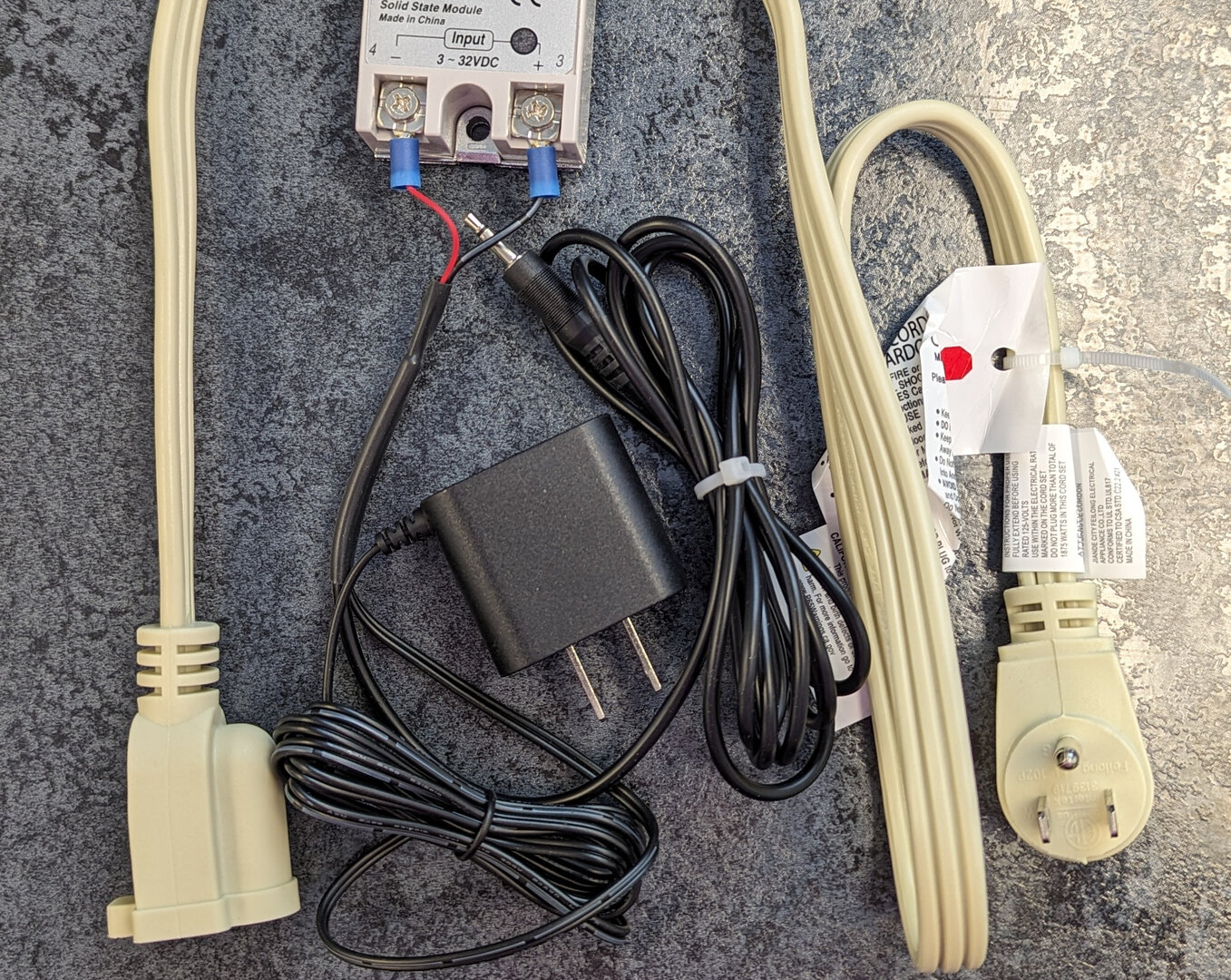

Wiring kits for on-air lights are available for the ARC-8, ARC-10 series, ARC-15 and MARC series consoles. These kits allow you to plug a standard on-air light into the provided female AC plug. The on-air light is not included in these kits, and must be provided by the user.



On-Air-1 - ARC-8 On-Air Light Kit (on-air light not included): $59



On-Air-2 - ARC-10 / ARC-15 On-Air Light Kit (on-air light not included): $59



On-Air-3 - MARC On-Air Light Kit (on-air light not included): $59



HOW TO BUY

ONLY AVAILABLE IN THE UNITED STATES (excluding Hawaii & Alaska) - For all international or orders for Hawaii or Alaska, please email consolesupport@arrakis-systems.com for a quote.



STEP 1 - Select which kit you want, and then select Buy Now. Ground shipping is the only option online. If you prefer faster shipping, you will need to contact consolesupport@arrakis-systems.com for a quote.

On-Air Kit (on-air light not included)

STEP 2 -  This will take you to the PayPal page for payment processing. If you have a PayPal account, you may then log on and pay. If you do not have an account, you may select the option "Don't have a PayPal account," and enter in your credit card information.



STEP 3 - Once we have received your order, and processed it, you will receive a notification email. Please provide a valid email address so we can keep you posted on the progress of the order. Standard lead time is approximately 2 to 3 days, but may be faster.



If you have any questions, or have any problems with the checkout process, then please contact our sales staff at sales@arrakis-systems.com.

ARC-16 Switcher - $995



The ARC-16SW routing switcher is designed to support Arrakis audio consoles. With 16 stereo inputs, it is an ideal remote selector to bring network audio feeds into one or more studios in a station. The power of the Windows PC control makes it quick and simple to name the switcher inputs and outputs for ease of operation. With client-server software, the switcher can be controlled from any PC on the station network and even from a remote location. One of the three outputs has a silence sensor with adjustable time delay and an emergency source input to respond to loss of on air signal. The ARC-16 is a powerful accessory for use with Arrakis audio consoles.



Features

... 16 stereo balanced analog inputs

... 3 stereo balanced outputs

... supports -10dBu to +4dBu input and output levels

... all inputs are multiturn trimpot adjustable

... controlled by a Windows PC (software supplied)

... Client-server software for multistudio control

... Software assignable Names for each input and output

... Lock out inputs to eliminate input to output feedback

... Silence sensor on one Output with emergency switching

... One week automation schedule for automated switching



Applications

... Remote input select for a console

... Input select for the station transmitter signal chain

... Automated recording of network feeds





ARC-16SW Hardware



The ARC-16 is flat wall mounted (similar to punch blocks) for ease of access in the station equipment room or in a studio furniture pedestal. Trim pot adjust of all inputs makes it easy to bring many source levels to a single station wide audio level. The ARC-16 can also be used to replace distribution amps for audio distribution. While the ARC-16 does not have a plug in expansion bus, the inputs are high impedance and multiple switchers can be wired in parallel to expand the number of outputs from 3 to 6 or more.



ARC-16SW Software



The ARC-16SW software is extremely easy to use. The software searches for the switcher automatically when opened and displays the current switcher status. The 17 by 3 button array makes it very easy to manually select a source channel for a console input or even for the station output to the transmitter chain. The automation schedule is a one week rotating schedule and is easy to set up. Schedule a basic hour (or day) and then copy & paste it into other hours & days. A count down clock displays time to the next scheduled event. A log documents the operation of the schedule. Very little training is required and the ability to name every source and output makes operation totally intuitive. The ability to lock out sources from an output makes feedback impossible. The software is ideal for use as an input expander for a console or as a station switcher.



The ARC-16 is a powerful accessory for use with Arrakis audio consoles or as a standalone switcher for use anywhere in a radio station..
